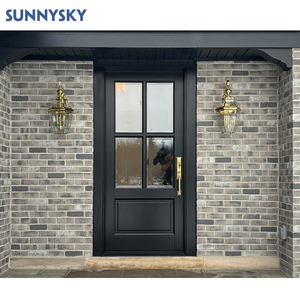

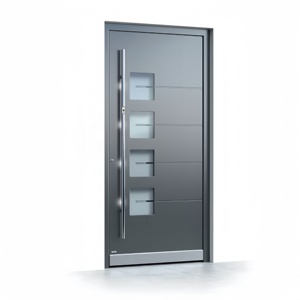

Featured OEM Architectural Pivot & Entry Door Systems
Engineered in our 180,000 m² state-of-the-art Foshan manufacturing base. Fully customizable specifications, tested for high wind-load resistance, acoustic dampening, and extreme security.
Industrial Scale & Verified Manufacturing Authority
As a leading custom OEM pivot front door manufacturer based in Foshan, Guangdong, we engineer grand entrance solutions for luxury residential villas, 5-star hotel lobbies, and high-traffic commercial facades worldwide.
1. Structural Engineering & Kinetic Physics of Large OEM Pivot Doors
Architectural pivot front doors represent a paradigm shift in modern building envelopes. Unlike conventional side-hinged entry doors that transfer structural loads directly to the vertical side jambs, custom OEM pivot front doors utilize top and bottom offset pivot anchors. This architectural geometry transfers thousands of Newtons of dead load directly down into the structural floor slab, allowing developers and architects to specify colossal entrance dimensions without risking frame sag or lock misalignments over time.
When sourcing from an established OEM pivot front door supplier, mechanical precision is paramount. Our engineering department executes rigorous deflection calculations for every custom order. By utilizing reinforced T6-temper extruded aluminum alloy profiles (typically 6063-T6 or 6061-T6 grades) combined with inner steel box-girder cores, our pivot doors exhibit minimal structural deflection even under extreme wind pressures exceeding 5,000 Pascals (equivalent to Category 5 hurricane stress limits).
Heavy-Duty Hardware Dynamics & Weight Distribution
The heart of any high-performance pivot entrance system lies within its concealed floor spring mechanism and top pivot pin assembly. Our proprietary OEM floor pivot systems integrate multi-axis hydraulic dampening, adjustable closing speeds, and hold-open detents at 90° and 125°. Supporting door leaf weights from 350 kg up to 1,000 kg, these heavy-duty hardware systems deliver fingertip operational effort (opening force under 15N), fully satisfying ADA compliance standards while maintaining impenetrable structural strength.
| Engineering Metric | Standard Hinged Front Door | Premium OEM Architectural Pivot Door | Industrial OEM Specification (DERKI) |
|---|---|---|---|
| Max Width / Height | 1,200 mm × 2,400 mm | 2,000 mm × 4,000 mm | Up to 2,500 mm × 6,000 mm |
| Panel Weight Capacity | 80 kg – 150 kg | 300 kg – 500 kg | Up to 1,000 kg (Custom Floor Spring) |
| Structural Deflection Limit | L/175 | L/250 | L/300+ (Steel Reinforced Core) |
| Acoustic Isolation Rating | 28 dB – 32 dB | 35 dB – 38 dB | 38 dB – 44 dB (Acoustic Drop-Seal) |
| Thermal Transmittance (U-Value) | 2.8 – 3.5 W/m²K | 1.8 – 2.2 W/m²K | 1.1 – 1.4 W/m²K (PA66 GF25 Break) |
| Air/Water Infiltration | Class 2 / 300 Pa | Class 3 / 450 Pa | AS2047 N6 / ASTM E330 Compliant |
2. Future Procurement Trends in Custom OEM Pivot Front Doors
The global market for luxury exterior doors is undergoing rapid evolution. Procurement managers, commercial real estate developers, and international facade contractors are moving away from off-the-shelf catalog products toward fully bespoke, contract-grade OEM solutions. Based on market intelligence and global project submittals, four key trends dominate future procurement directives:
Architects demand grand entrance statements. OEM orders for pivot doors exceeding 3.5 meters in height have grown over 45% year-over-year, requiring advanced thermal-break extrusion dies and anti-warping tension rods within panel frames.
Modern pivot entrance systems seamlessly embed hidden motorized multi-point locks, 3D facial recognition, invisible fingerprint scanners, and Smart Home automation protocols (Zigbee, Matter, RS485 for KNX building controls).
Bespoke facades require unique textures. The market is shifting toward hybrid cladding—combining 3D hand-carved cast aluminum exterior plates, warm natural timber interiors, and Low-E argon-filled glass sidelights.
To accommodate these trends, our factory provides comprehensive CAD shop drawing submittals, BIM model integration, and rapid prototyping services, ensuring that OEM partners receive custom hardware pre-machined with sub-millimeter precision before export shipping.
3. Industrial Manufacturing Innovations & Quality Assurance Standards
Achieving flawless performance across varying climatic conditions—from sub-zero Scandinavian winter freezes to humid, high-salinity coastal environments in Florida and the Middle East—demands absolute perfection in material processing and surface treatment engineering.
Thermal Isolation Engineering (Polyamide Barrier Technology)
Uninsulated metal frames act as thermal bridges, causing moisture condensation, interior frost formation, and massive HVAC heat loss. Our OEM aluminum pivot door series incorporates PA66-GF25 (25% glass-fiber reinforced polyamide) thermal break strips. This creates a complete thermal barrier between the exterior element and interior environment, enabling our pivot doors to achieve ultra-low overall U-values while maintaining structural shear strength across extreme temperature differentials (-40°C to +80°C).
High-Durability Surface Finishing Matrix (Fluorocarbon PVDF & Anodizing)
Surface degradation from ultraviolet radiation and coastal salt spray is the leading cause of door finish failure. As an ISO 9001 certified OEM manufacturer, we utilize strict multi-stage surface pre-treatment followed by top-tier architectural coatings:
- AkzoNobel / PPG Fluorocarbon (PVDF) 3-Coat Systems: Formulated with 70% Kynar 500 resin, providing over 25 years of fade resistance and zero chalking under severe UV exposure.
- Hyper-Durable Powder Coating (AAMA 2605 Specification): Delivering exceptional scratch resistance and impact durability, meeting international commercial building standards.
- Custom Cast Aluminum Bronze Patinas & Anodized Finishes: Providing bespoke artistic appeal with a 25-micron protective oxide layer, ideal for luxury estate entrances.
Acoustic Sealing & Perimeter Weatherproofing Physics
One of the historical engineering challenges of large pivot doors was securing air and water tightness around the offset pivot clearance points. DERKI solves this with a dual-quadrant sealing system: automatic drop-down EPDM bottom seals combined with continuous perimeter magnetic compression gaskets. When the door leaf reaches its closed position, the internal mechanical plunger triggers an airtight bottom sweep that seals gaps up to 15 mm, effectively blocking wind-driven rain, acoustic noise, dust, and insects.
4. Verified Enterprise E-E-A-T & International Code Compliance
Working with Guangdong Derki Doors & Windows Technology Co., Ltd. eliminates supply chain risk for global B2B buyers. Our manufacturing facilities are fully audited and compliance-certified across major international regulatory frameworks:
Tested to Australia's highest structural standards (N6 rating), validating air infiltration, water penetration resistance, and structural deflection under extreme cyclonic wind loads.
Fully compliant with European Union safety, health, and environmental protection directives (EN 14351-1), ensuring seamless commercial importation throughout EU member states.

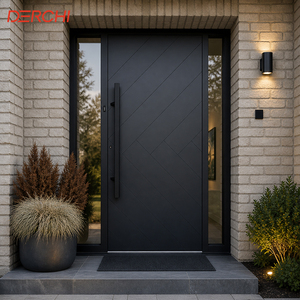

Engineered fire-resistant steel and composite door core constructions compliant with UL 10C / NFPA 252 testing requirements for high-density multi-family and hotel lobby fire separation.
Every OEM order undergoes rigorous 100% factory pre-assembly testing. Panels are fitted into mock frames, checking pivot smooth-turn torque, multi-point lock alignment, glass unit sealing, and dimensional tolerances (within ±0.5 mm) prior to export crating in IPPC ISPM 15 certified fumigated wooden cases.
5. Frequently Asked Questions by Global Buyers & Engineers
Clear technical answers to common queries raised during project tenders, door schedule submittals, and supplier qualification audits.
What is the structural lead time for custom OEM pivot door orders?
Can you manufacture oversized pivot doors based on custom architectural drawings?
How do you ensure water tightness and air infiltration performance on pivot doors?
What locking hardware options can be integrated into your custom pivot doors?
What is your packaging protocol to prevent damage during ocean container transport?
Which entry door materials perform best in coastal environments?
Do you offer field installation support or technical guidance for international contractors?
Accelerate Your Architectural Project Today
Partner directly with Guangdong's premier custom OEM pivot front door manufacturer. Submit your door schedules or project specifications to receive instant technical feedback and competitive factory-direct pricing within 24 hours.
