Featured Commercial & Residential Aluminium Pivot Door Systems
Explore our factory-engineered flagship pivot entry systems manufactured in Foshan, China. Built with structural 6063-T6 aluminum profiles, thermal break polyamide PA66GF25 bars, multi-point locking hardware, and high-load hydraulic floor springs.
Secure Large Opening Aluminum Entry Pivot Doors for High End Residential
Engineered for expansive luxury openings, featuring reinforced structural extrusion frames and anti-burglary hardware.
Modern Design Villas Black Profile Aluminum Frame Front Entry Pivoting Door
Sleek architectural black finish with fluorocarbon coating, providing superior UV stability and zero-fading durability.
Luxury Cast Aluminum Front Entry Door High Security Anti-Theft Fire Prevention
High-density cast aluminum panel construction offering ballistics resistance, fire prevention, and intricate metallic artistry.

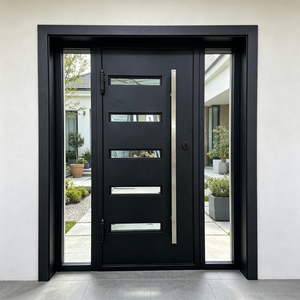

Oversized Aluminum Pivot Door AS2047 Certified Glazed Grand Mansion Entrance
Certified to Australian standard AS2047 N6 rating for extreme wind pressure, air infiltration, and water penetration resistance.

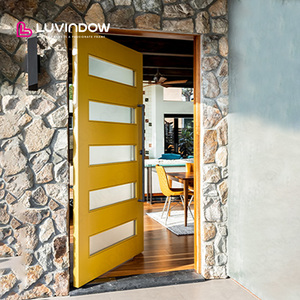

Modern Aesthetic Low Maintenance Thermal Break Aluminum Villa Entrance Door
Equipped with high thermal efficiency barriers to prevent heat transmission, maintaining interior climatic comfort year-round.
NFRC Certified High Load Bearing Aluminum Glass Pivot Door System
NFRC tested for North American energy compliance with heavy-load German hidden floor spring mechanics.
Florida Miami-Dade Approved Big Panel Tempered Glass Aluminium Front Pivot Door
Impact glass engineered with SentryGlas interlayers for hurricane zone structural protection in North American coastal areas.
Exterior Entrance Cast Aluminium Main Door with Integrated Glass Pivot Security
Combines structural cast alloy faceplates with double-side acoustic drop seals and keyless smart access control.
1. Technical Architecture & Structural Engineering of Modern Aluminium Pivot Doors
Modern architectural entry systems have transitioned from conventional side-hinged doors to structural monolithic pivot portals. In luxury residential estates, five-star hotel lobbies, and high-end commercial headquarters, large-format aluminium pivot doors serve as both a statement piece and a high-performance building envelope element. However, engineering an oversized pivoting panel that spans up to 6000mm in height and 2500mm in width requires rigorous structural mechanics, precision extrusion metallurgy, and advanced thermal isolation engineering.
Unlike standard side hinges that transfer vertical static loads and rotational cantilever forces directly into the side jambs, a pivot door distributes its dead weight vertically into the concrete slab or structural floor beam through a heavy-duty floor spindle pivot system. This architectural weight distribution mechanism eliminates frame sagging over time and allows panels weighing up to 1000 kg (2200 lbs) to operate with effortless single-finger rotational friction.
- Aluminium Metallurgy (6063-T6 / 6060-T66): Profiles are extruded from primary aluminum billets treated to T6 temper, providing a ultimate tensile strength of ≥ 205 MPa and yield strength of ≥ 170 MPa to withstand wind velocity pressures exceeding 4.0 kPa.
- Thermal Break Barrier Integration: To prevent energy loss and thermal bridging, structural extrusions incorporate multi-cavity Technoform Polyamide PA66GF25 (25% glass fiber reinforced) insulating bars, yielding thermal transmittance values (U-factor) as low as 1.2 W/m²K.
- Internal Anti-Warping Shear Bar Mechanics: Oversized exterior aluminum panels subjected to extreme temperature differentials (e.g., +45°C exterior sun exposure vs. +20°C interior air conditioning) utilize patented bi-metal thermal compensation bars inside the profile cavity to neutralize thermal bowing.
To ensure long-term environmental protection, high-end export-grade aluminum pivot doors undergo multi-stage surface treatments. Fluorocarbon PVDF coatings (complying with AAMA 2605 specification) or Class I anodized oxides (≥ 25 microns) provide immune resistance against salt spray corrosion, atmospheric sulfur pollution, and harsh ultraviolet degradation in extreme tropical or coastal climates.
2. Future Procurement & Procurement Trends in Global Architectural Doors (2025–2030)
The global luxury architectural hardware and fenestration market is undergoing a seismic shift driven by strict building energy codes, extreme climatic events, and the rapid adoption of automated smart home ecosystems. Importers, general contractors, developers, and architects must align their sourcing strategies with four core macro procurement trends over the next decade.
Trend A: Smart Access Automation & Motorized Auto-Pivot Integration
Traditional manual latching is rapidly giving way to fully automated, concealed electric drive pivot mechanisms. Commercial projects and luxury modern villas now demand integrated electromechanical motors housed entirely within the head transom or floor cavity. These systems feature sensor-driven auto-opening, soft-closing dampers, integrated solenoid multi-point locking bars, and seamless RS485 / CAN-bus communication with central home automation systems (Crestron, Control4, KNX) and biometric access controls (facial recognition, 3D vein scanner, mobile NFC credentials).
Trend B: Extreme Wind-Load Deflection & Hurricane Impact Certification
As hurricane intensities escalate in coastal North America, Australia, and East Asia, procurement specifications now demand rigorous impact and cyclic wind pressure validation. Forward-thinking manufacturers engineer pivot doors using laminated insulated glass units (IGU) equipped with SentryGlas® (SG) ionoplast interlayers. Passing Florida's Miami-Dade High-Velocity Hurricane Zone (HVHZ) Testing Protocol (TAS 201, 202, 203) and Australia's AS2047 N6 structural rating has become a baseline requirement for premium international tenders.
Trend C: Zero-Threshold Flush Floor Transitions with Dynamic Weather Sealing
Historically, exterior pivot doors suffered from poor water tightness at the bottom threshold due to the rotational arc of the panel. Sourcing trends now mandate barrier-free ADA-compliant flat threshold designs featuring dual automatic magnetic drop-down seals. As the panel approaches its 0° closed position, high-strength neodymium magnetic strips or mechanical plunger pins trigger continuous EPDM compression seals to drop automatically, sealing bottom gaps against driving wind-borne rain (up to 700 Pa water resistance) while maintaining zero floor obstruction when open.
Global Sourcing Benchmark & Performance Specification Matrix
| Specification Metric | Standard Residential Door | Commercial Grade Pivot | DERKI Flagship Engineered Pivot |
|---|---|---|---|
| Max Panel Dimensions (H x W) | 2400mm x 1000mm | 3000mm x 1500mm | 6000mm x 2500mm (Custom Monolithic) |
| Structural Alloy & Wall Thickness | 6063-T5 (1.4mm - 1.8mm) | 6063-T6 (2.0mm - 2.5mm) | 6063-T6 Structural Profile (3.0mm - 4.0mm) |
| Floor Pivot Load Capacity | 100 kg - 150 kg | 250 kg - 350 kg | 500 kg - 1000 kg Heavy Hydraulic Spindle |
| Air Infiltration (ASTM E283) | ≤ 1.5 m³/m²·h | ≤ 0.5 m³/m²·h | ≤ 0.08 m³/m²·h (Acoustic Drop Seal) |
| Water Penetration (ASTM E331) | 150 Pa | 300 Pa | ≥ 700 Pa (Equalized Pressure Drainage) |
| Thermal Performance (U-Factor) | 3.2 - 4.0 W/m²K | 2.2 - 2.8 W/m²K | 1.1 - 1.5 W/m²K (PA66GF25 + Aerogel Inserts) |
| Acoustic Isolation Rating (STC) | 28 dB - 32 dB | 35 dB - 38 dB | 42 dB - 46 dB Double-Rebate Sealed Panel |
3. Evolution & Industry Development Trends of Aluminium Pivot Systems
To evaluate where architectural fenestration is heading, one must analyze the technological progression of entry door design over the last three decades. The evolution can be divided into three distinct generational phases:
Wood/Iron panels limited in size, vulnerable to moisture rot, thermal warping, and sagging hinges.
Non-thermal broken extrusions, exposed threshold steps, manual surface locks, basic weather seals.
PA66GF25 thermal breaks, hidden floor hydraulics, motorized smart locks, zero-step thresholds.
Integrated IoT sensors, vacuum insulated glass (VIG), cast alloy armor, automated dynamic sealing.
The contemporary Generation 3.0 and emerging Generation 4.0 designs combine structural aluminum honeycombs within sandwich panel cavities. Aluminum honeycomb cores provide an exceptional stiffness-to-weight ratio, ensuring that wide entrance doors remain perfectly flat despite violent storm gusts or solar radiant heat buildup.
4. Enterprise Strengths: Sourcing Factory-Direct from Foshan Hub (DERKI)
When procuring architectural aluminum pivot doors for overseas commercial or high-end residential projects, choosing the right manufacturing partner is paramount to risk mitigation. Guangdong Derki Doors & Windows Technology Co., Ltd. (DERKI) is a premier vertically integrated door manufacturer headquartered in Foshan, Guangdong Province—China’s global capital for architectural aluminum extrusion and fenestration technology.
Spanning a modern 180,000 square meter intelligent manufacturing production base with over 600 highly trained employees and a dedicated team of facade engineers, DERKI delivers end-to-end custom door solutions for international importers, luxury villa developers, general contractors, and architectural design firms.
Core Manufacturing Advantages & International Compliance:
- Strict Quality Control (ISO 9001 System): Every profile extrusion, corner crimping joint, glass seal, and hardware recess is CNC-machined under sub-millimeter tolerances. Pre-assembly fit testing is conducted for 100% of global export orders before crating.
- International Testing & Certification Portfolio: DERKI pivot doors carry full certified test reports including European CE Marking, Australian AS2047 (N6 Cyclone Level), North American NFRC thermal rating, and UL Fire-Rated door assemblies. Certified documentation is provided for local building department inspection submittals.
- Free In-House BIM & CAD Shop Drawings: DERKI’s engineering department provides custom CAD elevation drawings, section details, perimeter structural anchorage calculations, and shop submittals tailored to your project's specific rough opening (RO) dimensions.
- Heavy-Duty Export Logistics Packaging: All doors are wrapped with non-marking protective surface film, fitted with high-density EPE foam corner guards, and enclosed in fully sealed ISPM-15 compliant plywood export crates with internal steel-banding to guarantee zero shipping damage across ocean transport.
- Direct B2B Pricing & 24/7 Technical Support: Eliminating intermediary brokers allows direct access to factory-direct wholesale pricing, backed by fluent English-speaking facade engineers working across global time zones.
5. B2B Buyer’s Technical FAQ & Sourcing Risk Mitigation
Below are technical answers to the most critical structural, thermal, shipping, and installation queries raised by global procurement managers and structural engineers when specifying aluminium pivot doors.
Q1: How do heavy hydraulic floor pivot hardware systems accommodate concrete floor deflection and long-term building settlement?
High-load floor pivot spindles (such as FritsJurgens or dormakaba systems integrated into DERKI doors) utilize heavy-duty stainless steel bottom floor plates anchored directly into structural concrete slabs using chemical expansion bolts. The top pivot pin is engineered with an adjustable telescopic spring-loaded spindle that allows ±5mm vertical height clearance adjustment and ±3° rotational alignment tweaking. This compensates for structural floor deflection or building settlement over time without binding the top frame transom seal.
Q2: What profile wall thickness and internal reinforcement are required for pivot doors exceeding 4 meters in height?
For oversized panels between 3.5m and 6.0m in height, standard 1.4mm or 2.0mm window extrusions are structurally inadequate under wind load stress. DERKI specifies heavy-duty 6063-T6 aluminum extrusions with a minimum main wall thickness of 3.0mm to 4.0mm. Additionally, continuous vertical steel stiffeners (Q235 or 304 stainless steel box tubes) are inserted inside the aluminum profile multi-cavities, and aluminum honeycomb cores are epoxy-bonded inside the door body to prevent panel flex and bow.
Q3: How do you achieve watertightness (ASTM E331) on exterior pivot doors designed with flush zero-step thresholds?
Flush floor designs eliminate raised bottom stops. To achieve water tightness up to 700 Pa, DERKI employs a pressure-equalized concealed drainage trough integrated beneath the finished floor level, combined with dual automatic drop-down EPDM seals. When the door closes, mechanical side actuators lower a heavy-duty continuous seal strip tightly against a stainless steel drainage channel sill plate. Any rain driven by high wind enters the threshold channel and drains out through one-way weeping valves to the exterior exterior sub-floor drain.
Q4: What is the architectural difference between extruded 6063-T6 aluminum profiles and solid cast aluminum panels for entrance pivot doors?
Extruded 6063-T6 aluminum doors are engineered with hollow or thermal-broken profile frames housing double/triple glass units or flat aluminum composite skins, offering modern minimalist aesthetics, superior energy insulation, and lighter panel weights. Solid cast aluminum panels are manufactured by pouring molten aluminum alloy into precision molds, producing 8mm to 15mm thick solid panels with intricate three-dimensional relief patterns. Cast aluminum delivers superior ballistic security, fire resistance, and classic luxury styling, though at a heavier structural weight.
Q5: What glass specifications are recommended for large-panel glazed exterior pivot doors?
For safety, acoustic dampening, and solar thermal control, DERKI recommends double or triple-pane toughened insulated units (e.g., 6mm Low-E Toughened + 16Ar Argon Gas + 6mm Toughened, or 8mm + 1.52PVB + 8mm Laminated IGU). In hurricane-prone areas, SentryGlas® (SG) ionoplast laminated glass is used. Warm-edge spacer bars (Technoform Swisspacer) are incorporated around the perimeter to lower thermal transmission along glass edges.
Q6: Can electric smart multi-point locks be integrated inside pivot door frames without visible wiring?
Yes. DERKI integrates fully concealed motorized multi-point locks (such as KFV Genius or Siegenia systems) directly inside the aluminum sash profile. Power and data wiring pass through a hidden armored flex loop or wireless inductive power transmitter concealed within the top pivot hinge axis. The lock engages multiple solid steel deadbolts into the frame jamb automatically upon closure and can be triggered via keypad, smartphone app, or building access control.
Q7: How are large pivot doors protected against frame distortion during long-distance ocean shipping?
Oversized door panels are prone to racking or twist if packed improperly. DERKI packs pre-hung or KD (Knocked-Down) frame systems inside custom steel-reinforced plywood crates. Panels are supported by dense foam blocks, corner protectors, and steel bracing straps. Desiccants are added inside sealed vapor-barrier plastic wrapping to prevent moisture condensation and oxidation inside ocean containers during transits up to 45 days.
Q8: What warranty coverage and after-sales support do DERKI factory-direct exporters provide?
DERKI provides a comprehensive 10-year structural warranty on all aluminum extrusions and surface finishes, along with a 5-year warranty on hydraulic floor pivots, motorized lock systems, and insulated glass units. Technical support includes step-by-step CAD installation manuals, video walkthroughs, and remote assistance with our facade engineering team throughout installation.
Request Technical Engineering Drawings & Factory Direct Quotation
Connect with Guangdong Derki Doors & Windows Technology Co., Ltd. for comprehensive product catalogs, custom CAD shop drawings, and B2B project pricing.
