Architectural Collection
Featured Large-Format & Security Entrance Doors
Direct factory supply engineered for luxury villas, commercial lobbies, and modern estates. Fully certified to international wind load, structural, and thermal efficiency standards.

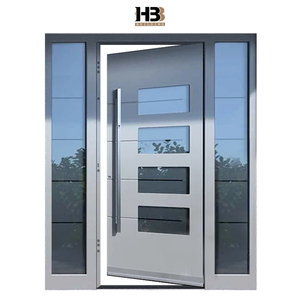

Modern Grey Design Prehung Aluminum Front Doors Waterproof Glass Inserted Metal For Villa Exterior Applications

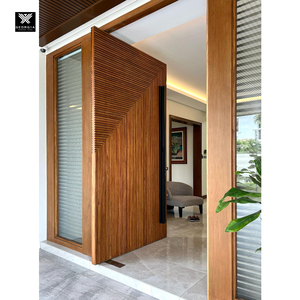

Contemporary Solid Wood Entrance Pivot Door With Geometric Vertical Slat Pattern For Houses Carving Wooden Doors
OEM Custom 2026 French Double Doors Double Swing Black Aluminum Grid Clear Glass Garden Patio Villa Thermal Fire Rated CE NFRC

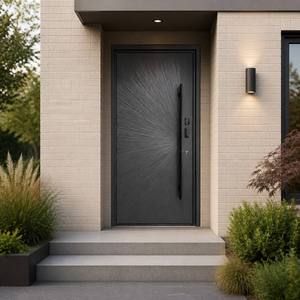

Cast Aluminum Security Door 3D Face Recognition Fingerprint Smart Lock Anti Burglary for Modern Villa Home Exterior
Aluminium CNC Carved Entry Door Thermal Break Fingerprint Smart Lock Tempered Glass PVDF Waterproof Villa Hotel ODM

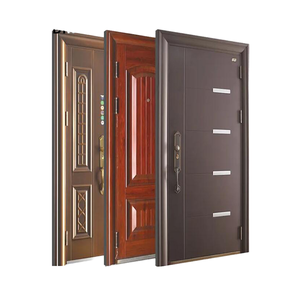

Modern Steel Entry Door With Sound Insulation And High Safety For House Security Interior/Exterior Use Finished Surface
JUNYAO Modern Horizontal Sliding Soundproof Patio Door For Balcony Garden Villa Courtyard Entrance Insect Screen Aluminum Alloy
Industry Whitepaper
Structural Engineering & Technical Standards of Large Pivot Entrance Systems
A detailed analysis of hardware kinematic mechanics, thermal barrier integration, and wind load resistance for architectural pivot openings exceeding 3.5 meters in height.
Hydraulic Heavy-Duty Offset Pivots
Traditional butt hinges fail under modern architectural demands where sash weights exceed 500 kg to 1000 kg. Our concealed hydraulic bottom pivot boxes transfer vertical shear stresses directly into the structural slab. Featuring adjustable damping control, closing speed calibration, and 90° hold-open mechanics, these hardware suites ensure effortless manual operation with less than 15N of operating force.
Extruded Polyamide Thermal Breaks
Large exterior entry portals require aggressive thermal isolation to eliminate structural cold bridging. Utilizing PA66 GF25 (25% glass-fiber reinforced polyamide) multi-chamber thermal struts integrated into T6-grade aluminum profiles, our systems achieve U-values as low as 1.1 W/m²K, satisfying stringent NFRC, Title 24, and European EN ISO 10077-1 energy efficiency compliance.
Perimeter Weather Tightness & Acoustic Barriers
Pivot doors naturally present perimeter sealing challenges due to rotational axis geometry. We solve air and water infiltration through automatic drop-down bottom pneumatic seals combined with continuous dual-density EPDM compression gaskets. This multi-layered design yields air permeability ratings meeting Class 4 (EN 12207) and acoustic attenuation ratings reaching up to STC 42 dB.
Information Gain: Deflection Mechanics & Deflection Ratio ($L/175$) in Coastal High-Wind Zones
When engineering oversized pivot entrance doors for coastal villas or elevated topography, wind deflection is the primary cause of structural failure and latch misalignment. Under high velocity wind pressures (e.g., AS2047 N6 standards exceeding 3000 Pa ultimate wind pressure), structural aluminum profiles must maintain a deflection threshold tighter than $L/175$ of the clear span length.
Our custom pivot entrance panels utilize inner multi-ribbed steel-reinforced core extrusions and perimeter structural silicone glazing (SSG) techniques. This engineering configuration counteracts thermal warping—often caused by significant ambient temperature differentials between dark-colored exterior PVDF coatings and air-conditioned interiors (the "differential solar expansion effect")—ensuring flawless latch engagement year-round.
2026–2030 Market Foresight
Future Procurement Trends for Modern Entrance Systems
As global luxury residential architecture shifts toward seamless indoor-outdoor transitions and monolithic minimalist facades, procurement requirements for entrance systems are undergoing a fundamental transformation.
Monolithic Oversized Scale (Heights > 4.5 meters)
Standard 2.1-meter front entry doors are rapidly being replaced in luxury specifications by floor-to-ceiling pivot panels reaching 4 to 6 meters. Importers and commercial contractors prioritize suppliers capable of extruding high-tensile 6063-T6 aluminum profiles that prevent panel twisting while allowing ultra-slim sightlines.
Invisible Mechatronic & Smart Access Integration
Mechanical keys are obsolete in high-end specifications. The market demands fully integrated, invisible electronic hardware: 3D structured-light face recognition, semiconductor capacitive fingerprint scanners, and motor-driven multi-point lock bodies wired directly into Control4, Crestron, or KNX home automation systems.
Sustainable Metallurgy & 3D Cast Aluminum Artistry
Carbon neutrality mandates across North America and Europe are driving demand for recycled high-grade aluminum and non-volatile organic compound (VOC) surface coatings. Simultaneously, 3D CNC-carved cast aluminum panels with fluorocarbon (PVDF) bronze patinas are trending for security-conscious luxury villas.
Specification Guide
Entrance Door Material Performance Benchmark Matrix
Objective engineering evaluation matrix designed for architects, structural engineers, and commercial procurement directors.
| Performance Criteria | Thermal Break Aluminum | 3D Cast Aluminum | Stainless Steel Core | Structural Low-E Glass |
|---|---|---|---|---|
| Primary Application | Modern luxury villas, oversized pivot portals | Classical estates, high-security gates | Commercial, high-traffic & security entrances | Hotel lobbies, daylight residential foyers |
| Structural Yield Strength | High (≥ 205 MPa, 6063-T6) | Ultra-High (Solid Cast Density) | Extreme (≥ 290 MPa, 304/316 Steel) | High (Tempered Laminate Glass) |
| Thermal Insulation (U-Value) | 1.1 – 1.4 W/m²K (PA66 Break) | 1.3 – 1.6 W/m²K (Core Infill) | 1.5 – 1.8 W/m²K | 1.0 – 1.3 W/m²K (Argon Triple IGU) |
| Corrosion & Salt-Spray Life | 30+ Years (Qualicoat PVDF) | 50+ Years (Rust-Proof Alloy) | 25+ Years (Grade 316 Coastal) | Lifetime (Inert Material) |
| Max Sash Weight Capacity | Up to 800 kg per pivot pin | Up to 1,000 kg heavy load | Up to 600 kg | Up to 500 kg per panel |
| Smart Lock Integration | Seamless internal profile routing | Concealed cast pocket mounting | Surface & mortise cut integration | Patch-fitting electronic strikes |
Why Partner With DERKI
Guangdong Derki Doors & Windows Technology Co., Ltd.
Headquartered in Foshan—China's world-renowned aluminum and facade engineering hub—DERKI is a vertically integrated, certified manufacturer with over 25 years of global export excellence.
180,000 ㎡ Manufacturing Base
Equipped with modern CNC extrusion lines, automatic powder coating plants, precision laser cutting systems, and specialized assembly workshops. Over 600 skilled technicians ensure tight tolerance manufacturing and repeatable quality control across all production runs.
International Testing & Certification
Our complete product portfolio maintains rigorous compliance with global standards, including CE marking for Europe, ISO 9001 quality management, AS2047 (N6 cyclone rated) certification for Australia, and UL Fire-Rated standards for North American commercial codes.
End-to-End Technical CAD Support
We eliminate installation risk for overseas contractors. Our dedicated English-speaking engineering team provides free custom CAD shop drawings, 3D structural elevation renders, hardware load calculations, and remote installation guidance matched to your project timezone.
Procurement FAQ
Frequently Asked Questions for Project Procurement
Expert answers regarding structural installation, sea freight logistics, custom design submittals, and compliance testing.
How do heavy-duty hydraulic floor pivots manage wind deflections on 4-meter tall doors?
Our 4-meter+ pivot entrance systems utilize custom multi-point locking rods embedded within heavy-wall T6 aluminum extrusions paired with top and bottom hydraulic heavy-duty pivot units. The bottom pivot transfers 100% of the vertical panel weight into the concrete foundation slab, leaving the top pivot pin to manage lateral shear forces caused by wind pressure. By calculating the frame deflection ratio under local design pressures ($L/175$ limit), we incorporate internal steel stiffeners to prevent bowing or air seal failure during high-wind events.
What concrete floor recessing depth is required for concealed pivot hardware?
Concealed hydraulic floor pivot boxes typically require a concrete slab recessing depth between 45 mm and 75 mm depending on total panel weight rating (500 kg vs 1000 kg capacity). We issue comprehensive foundation CAD anchoring templates prior to door production so project general contractors can prep steel rebar placement, electrical conduit feeds (for smart locks), and concrete blockouts accurately during early slab pours.
How does DERKI achieve water tightness without high step thresholds?
We utilize dual-barrier engineering: an invisible auto-drop neoprene bottom seal combined with a flush concealed drainage track. When the pivot panel closes, an automatic mechanical plunger deploys a heavy-duty compression seal against the finished floor level. For hurricane-prone or highly exposed exterior openings, we provide sub-floor aluminum drainage channels featuring one-way check valves that channel driven rainwater outward before it breaches the interior line.
Are your custom pivot doors compliant with coastal hurricane and wind-borne debris codes?
Yes. Our aluminum alloy pivot doors can be configured with SGP (SentryGlas®) laminated impact-resistant glass units and reinforced structural profiles tested to AS2047 N6 standards (covering structural deflection, air infiltration, and water resistance at high pressures). Test certificates and engineering calculations can be provided for local building code submittals and plan sign-offs.
How are oversized pivot doors packaged for international sea freight transportation?
Large-format architectural pivot doors require specialized export packaging. Each door panel is wrapped in protective scratch-resistant surface film, guarded with high-density EPE foam corner protectors, and fully sealed inside fumigation-free solid plywood crating reinforced with steel banding. Glass panels are pre-installed or crated separately with rubber shock-absorber blocks to ensure zero damage during ocean transit.
Can biometric smart locks be integrated into thermal break aluminum pivot profiles?
Absolutely. Our CNC machining centers cut precise internal mortise pockets directly into the thermal break aluminum profile during factory fabrication. We integrate hidden conduit wiring channels for power transfers through the pivot hinge pin, allowing 3D Face Recognition, RFID keycards, and biometric fingerprint sensors to function seamlessly without exposed wiring or unsightly battery boxes.
Transform Your Building Entrance Today
Partner with China's leading pivot entrance door exporter. Submit your architectural elevations or door schedule to receive free engineering CAD shop drawings and factory-direct pricing within 24 hours.
